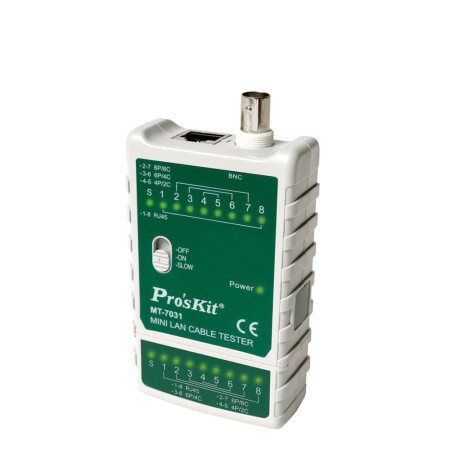

MT-7031 Mini Lan Cable tester
By Proskit
SKU : MT-7031
DC 60V Circuit Protection3 in 1 One Touch Test
• Comprehensive cable tester for RJ45, RJ11/12/22, BNC cable check.
• Long cable test more than 300 meters • Provides 2 scan modes (Slow /Fast) to detect cable status – good connection, open, crossed wire or short.
• Pin to pin cable map indicator
• DC 60V input protect ion ensures user safety and product service life
Cables Tested | UTP and STP LAN cables Terminated in RJ-45, RJ-11/12/RJ22 cables with male connectors, BNC cables with male connectors. | ||
Display (Main Unit) | 1-8 LED , S (Shielded) | ||
Display (Remote Unit) | 1-8 LED , S (Shielded) | ||
Dimension(mm) | 112*60*25 | Max. Testing Distance | 300m |
Accessories | BNC-RJ45 Adaptor *1pc | Power | 12V 23A *1pc |
