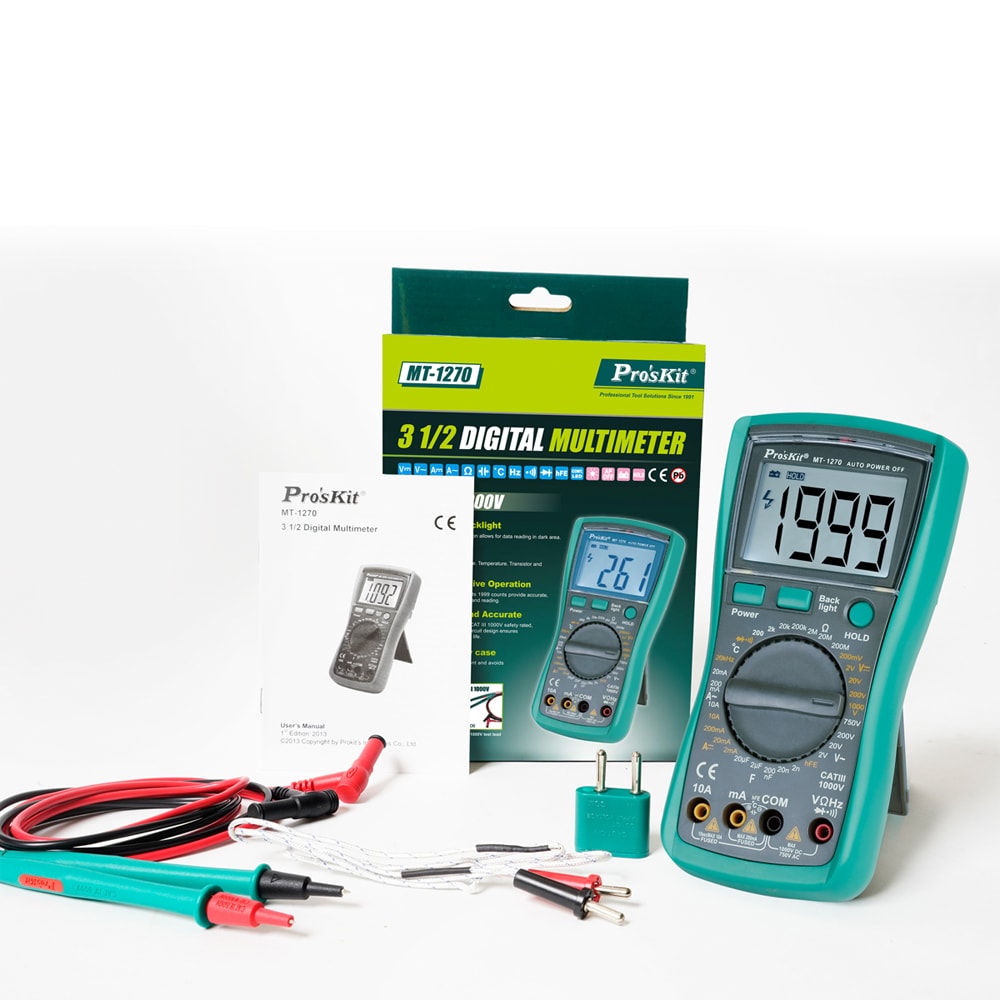

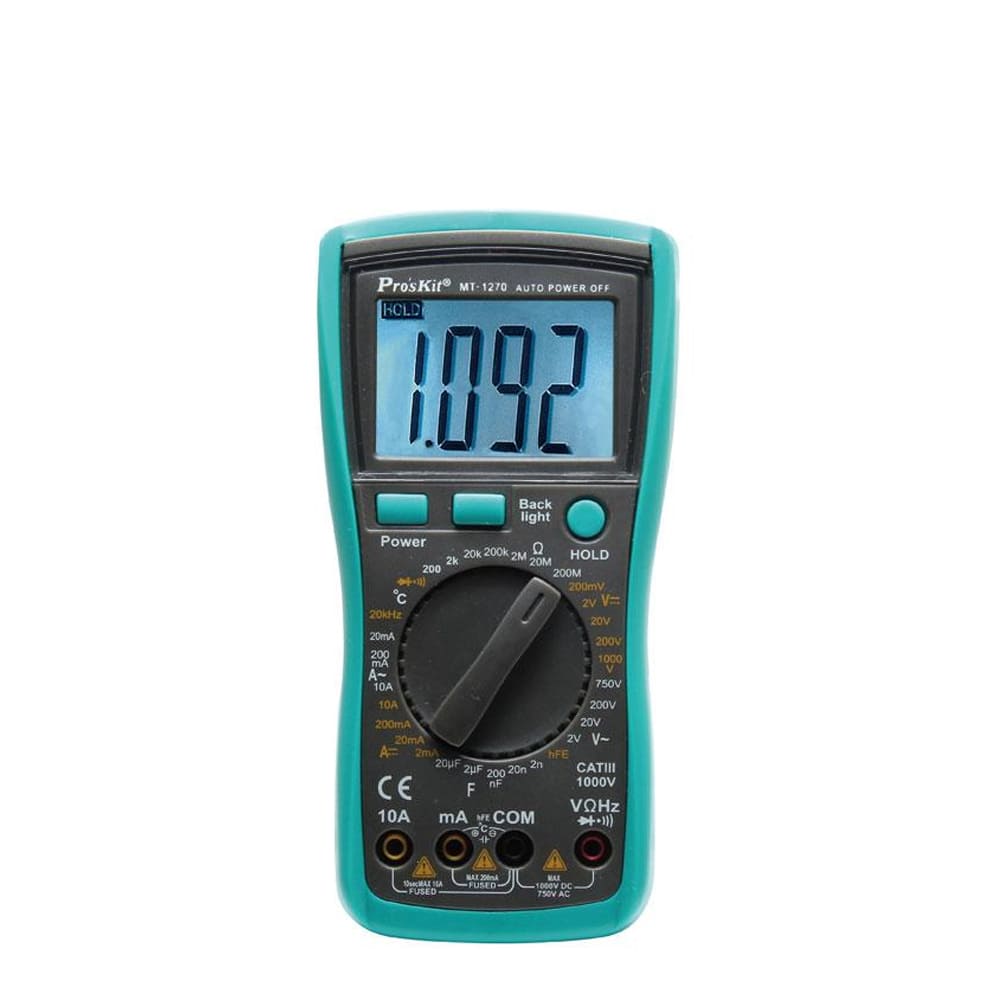

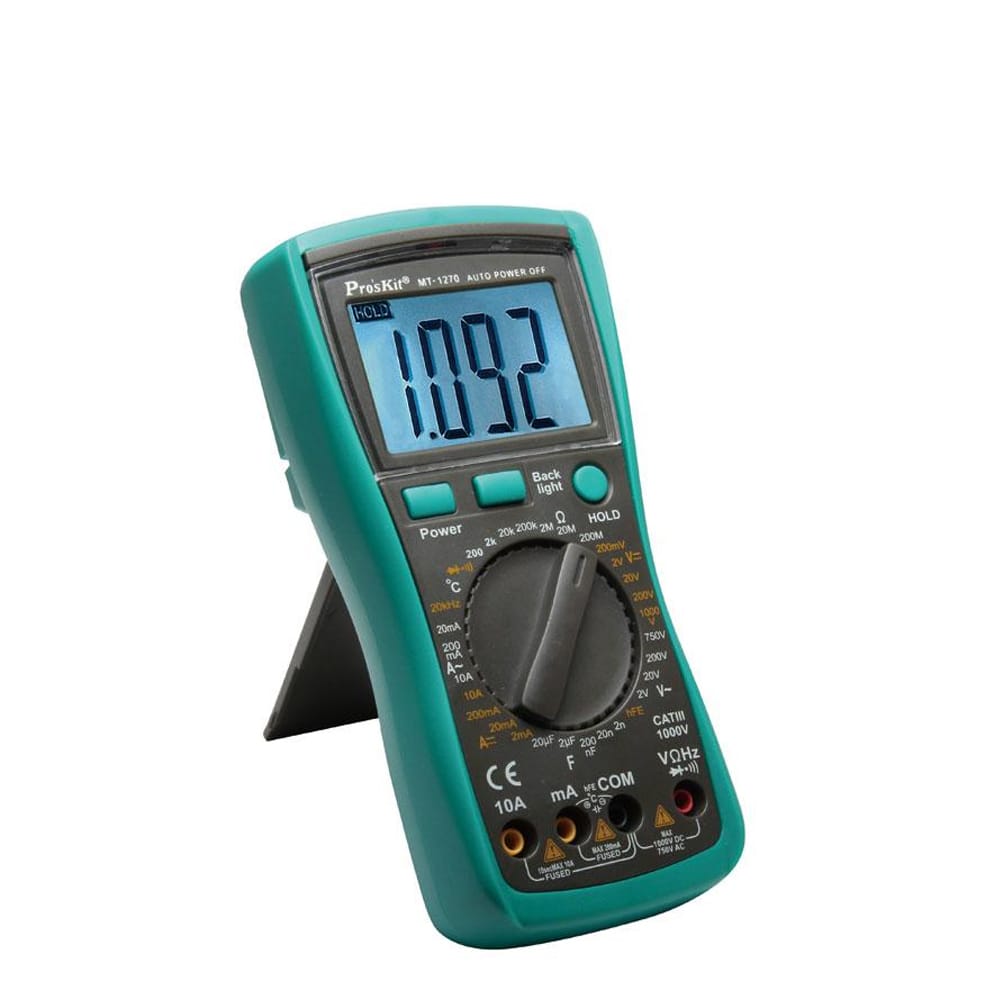

MT-1270 Digital Multimeter
By Proskit
SKU : 0
Frequency/Capacitance/Temperature/DMM All in 1.
Features
| Model No. | MT-1270 |
| Digits | 3 1/2 digits 1999 counts. |
| Accuracy | 0.5 best accuracy. |
| DCV | 200mV/2V/20V/200V ±(0.5%+3d)1000V ±(0.8%+10d) |
| ACV | 2V/20V/200V ±(0.8%+5d)750V ±(1.2%+10d) |
| DCA | 2mA/20mA ±(0.8%+10d), 200mA ±(1.2%+8d), 10A ±(2.0%+5d) |
| ACA | 20mA ±(1.0%+15d), 200mA ±(2.0%+5d), 10A ±(3.0%+10d) |
| Resistance | 200Ω ±(0.8%+5d), 2K/20K/200K/2MΩ ±(0.8%+3d) 20MΩ ±(1.0%+25d), 200MΩ ±[5.0%(rdg-10)+30d] |
| Frequency | 20K Hz ±(3.0%+18d) |
| Capacitance | 2nF ±(2.5%+20d), 20nF ±(2.5%+20d), 200nF ±(2.5%+20d), 2μF ±(2.5%+20d), 20μF ±(5.0%+30d) |
| Temperature | (-20˚C~400˚C)±1.0%+5d, (400~1000˚C)±(1.5%+15d) |
| Battery | 9V(6F22) (Not Included) |
| Size (HXWXD)mm | 182x90x46 |
| Test leads model no. | MT-9906 |
| Individual packing | Color Box |
